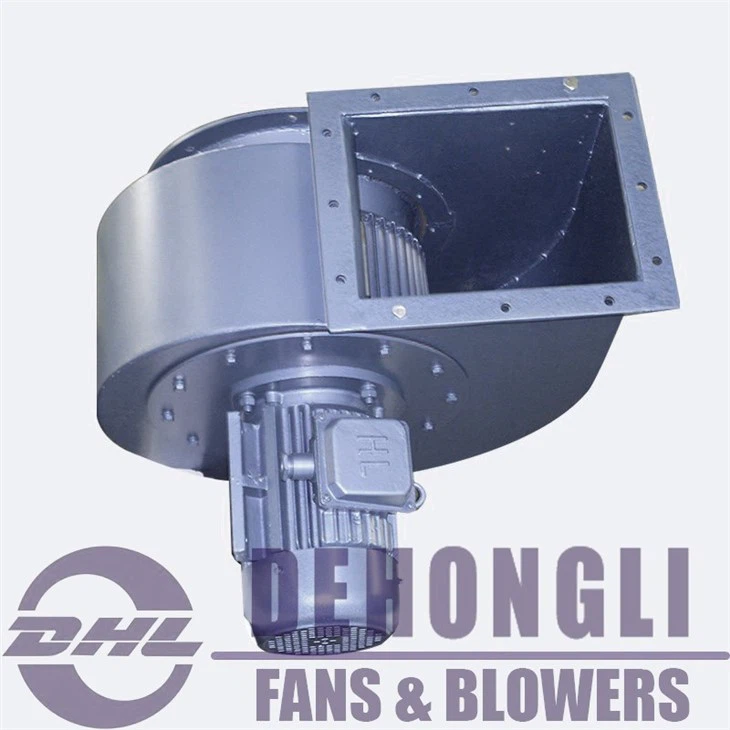

JCL(CLQ) Series Marine Centrifugal Fan

JCL(CLQ)series marine or navy centrifugal fans (thereafter called the fan)are capable of blowing air, ocean air containing salt vapor, and corrosive air which contains oil vapor and a small quantity of acid steam generated by the natural evaporation oft the batteries. They are suitable for cabin air ventilating and exchanging as well as boiler ventilation on ocean-going vessels. They are also applicable in other places that suit.

The fan is designed and manufactured according to GB/T11865-2008《Marine Centrifugal Fan》and the current《Ship Building Norms》.

OPERATING CONDITIONS

Features

The fan is of horizontal type with direct coupling for the motor however, it can also be constructed into an vertical type.

The impeller is made of riveted aluminum alloy . It has been undergone both static and dynamic calibrations.

Both the casing and the inlet are made of welded common steel with airtight structure.

TYPE DESIGNATION

Model explanation
