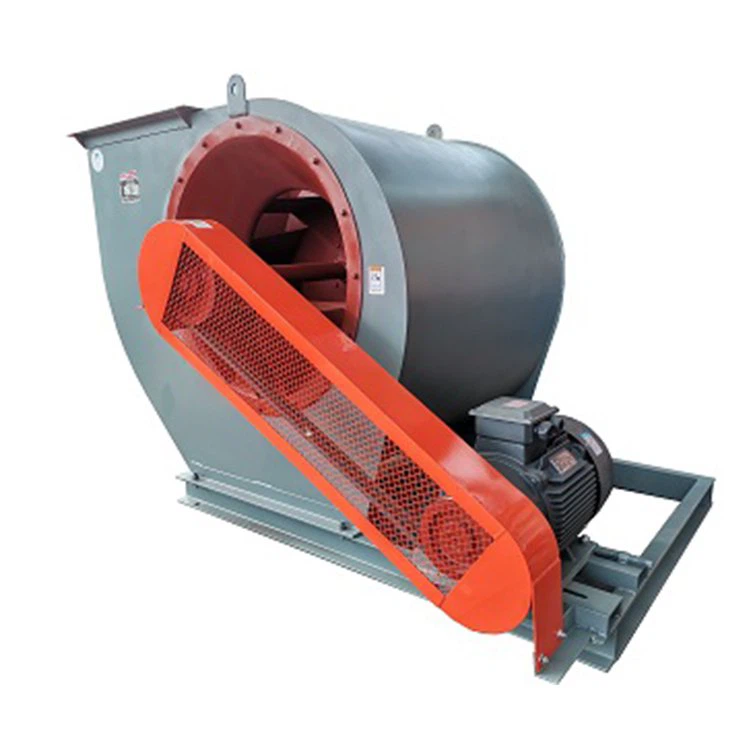

China API Standard 673 V-Belt Driven Exhaustor Large Volume Wood Dust Conveying 1450 Rpm Fan Centrifugal Fan for Petroleum

We actively promote green manufacturing, develop environment-friendly High Temperature Centrifugal Blower, Ventilator Centrifugal Industrial, Centrifugal Fan, and build a beautiful China together. We believe we can satisfy with you. We are able to also deliver you with absolutely free samples to meet your needs. We have been adhering to the business philosophy of 'Quality, Sincerity, and Innovation' to continuously enhance market competitiveness and serve business partners loyally. Please get hold of us freely.

4×2-72 centrifugal fan uses

4×2-72 centrifugal fan can convey air and other gases that are not spontaneously combustible, harmless to human body and non-corrosive to steel. No sticky material is allowed in the gas, and the dust and hard particles contained are not more than 150mg/m³. The gas temperature shall not exceed 80℃. The fan has good pneumatic performance, balanced operation, small vibration, high efficiency and long life. It is widely used in industrial and mining enterprises, large buildings, hotels and restaurants for indoor ventilation and air exchange.

4×2-72 type centrifugal fan type

1.The fan can be made into two types of right or left rotation, and the outlet position of the fan is indicated by the angle of the air outlet of the casing, which is 0°, 90°, 180°.

2.The fan uses double inhalation intake, machine number 6E, 8E, 10E, 12E, 14E, 16E, 18E, 20E. (The drive mode is E)

4×2-72 centrifugal fan structure

4×2-72 type centrifugal fan consists of impeller part, casing part, air inlet, bearing seat, motor, etc. It has the features of compact structure, easy installation and convenient maintenance.

1.Impeller: It is composed of two impellers with different rotational directions, each impeller has 10 wing-shaped blades and an arc-shaped front disk, which is corrected by dynamic leveling and smooth running.

2.Air inlet: steel plate made of conical arc flow channel.

3.Housing: welded into worm-shaped body by steel plate, and with bearing bracket, fan seat.

4.Bearing seat: double-row radial spherical bearing and lubricated with calcium nano-grease.

With the vision of becoming the most competitive enterprise and the most valuable company in the world, we are committed to providing customers with valuable China API Standard 673 V-Belt Driven Exhaustor Large Volume Wood Dust Conveying 1450 Rpm Fan Centrifugal Fan for Petroleum and services. The company respects the personality and pursuit of employees, encourages employees to improve their own abilities, and recognizes the achievements made by employees. Our work and service goals are endless, requiring us to enhance the sense of pressure and responsibility, and constantly improve the level of service and achieve new results.
